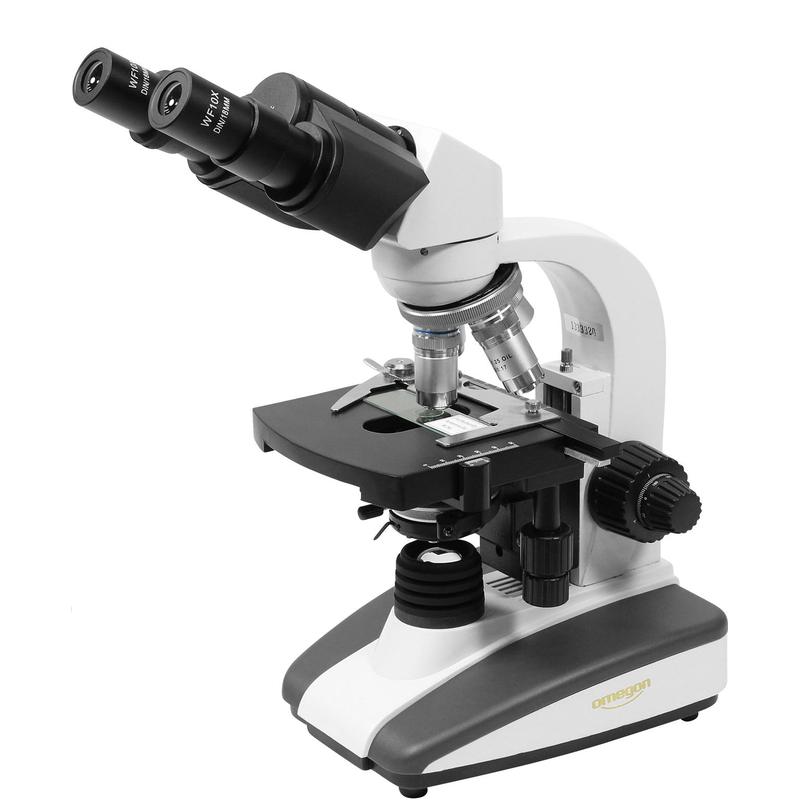

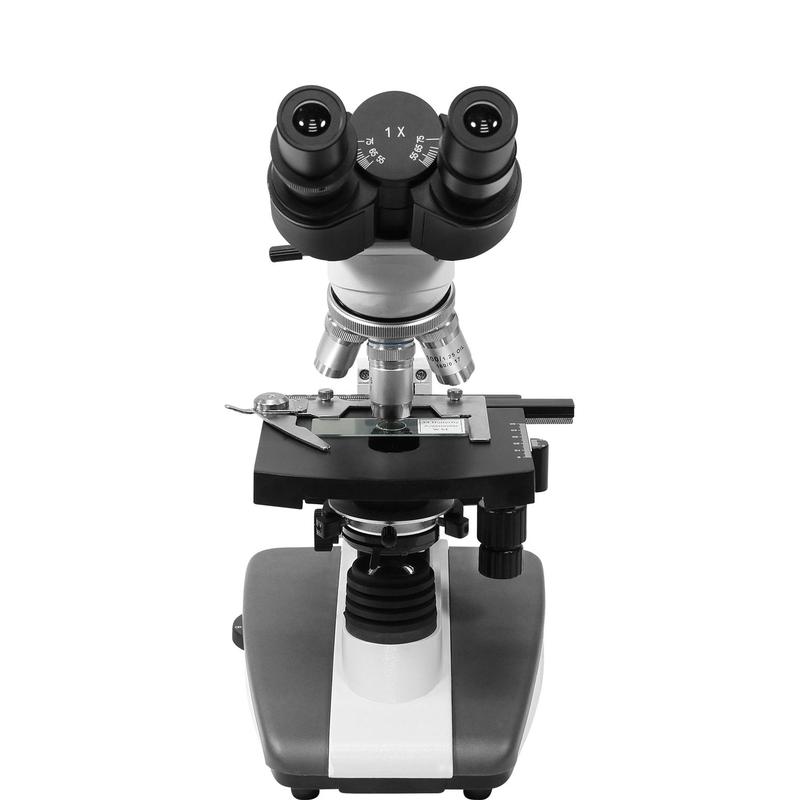

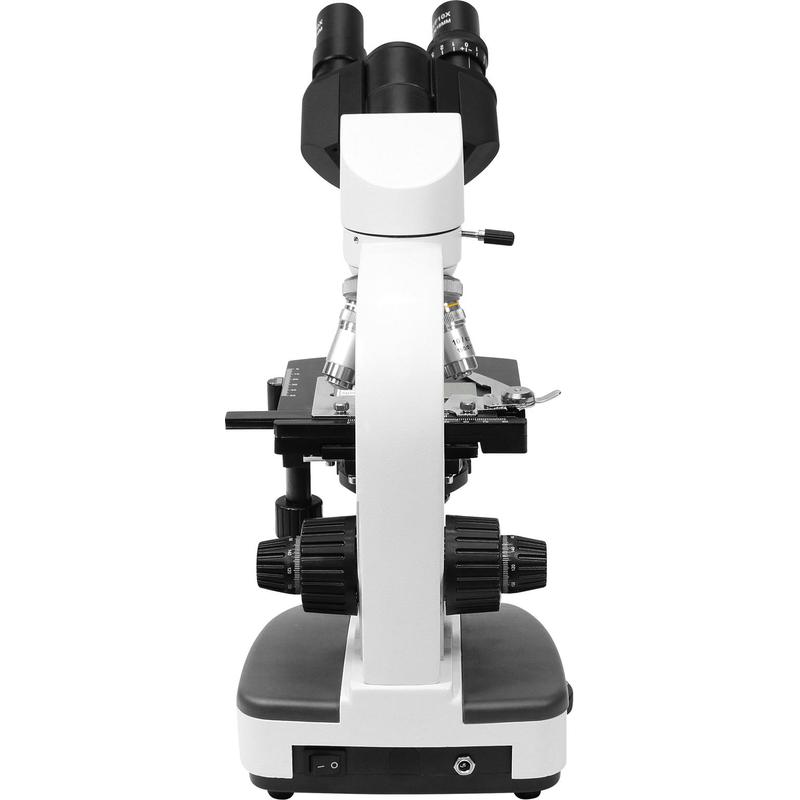

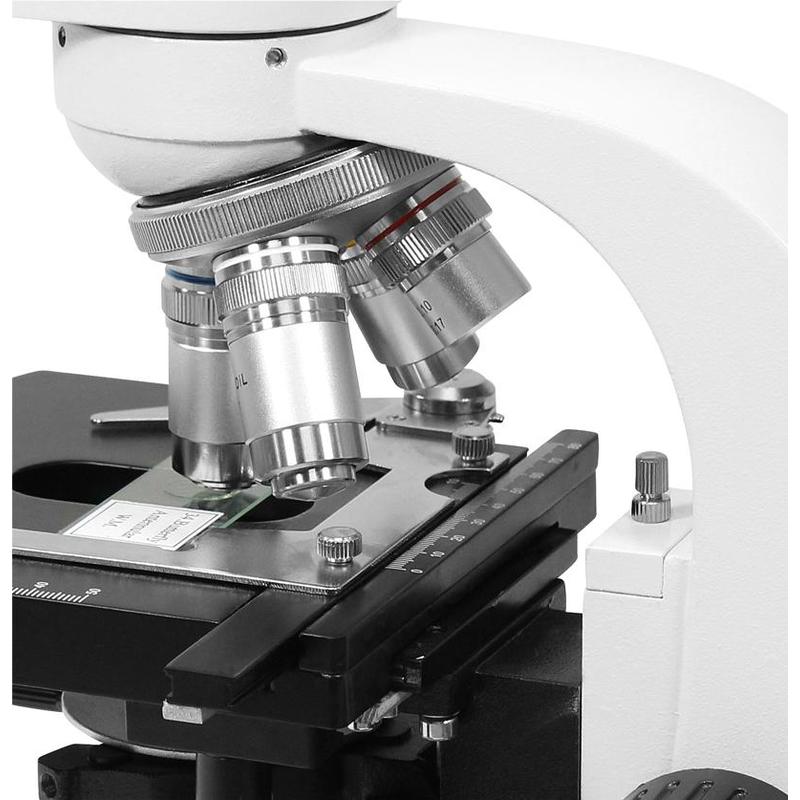

Mikroskop Omegon BinoView achromát LED 50x-1000x ★ Astro obchod

Zobrazit katalog

Obchod → Mikroskopy → Školní a laboratorní → Mikroskop Omegon BinoView achromát LED 50x-1000x

Cena s DPH: 9 695,-

1-2 týdny

Optics
Lighting	Transmitted light
Lamp type	LED (6V/20W, adjustable)
Magnification	1000 (50, 100, 500, 1000)
Image scale	4,10,40,100 (4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65), 100 (N.A. 1.25 oil immersion))
Eyepiece	10 (Wide-angle eyepiece)
Condensor	Abbe (N.A. 1.25, height adjustable, centerable)
Lens type	Achromatic
Power supply	Power plug
Capacity
brightfield	yes
Mechanics
Specimen stage	Cross table (with vernier scale)
Type of build	binocular
Viewing posture (°)	30° oblique viewing, 360° rotating head
Focusing	Coarse and fine movement
Special features
Built-in digital camera	-
Centering stage	-
Dust cover bag	-
Rechargeable battery operation	yes
Filter holder	yes
Luminous field diaphragm	yes
Immersion lens	yes
General
Colour	black-white
Series	BinoView
Suitable from	12
Length (mm)	280
Width (mm)	360
Height (mm)	175
Weight (g)	3800
Suitable for
Pros	-
Beginners	-
Advanced	yes
Field of application
Education	yes
Hobby - Amateur	yes
Area of application
Phase contrast	-
Polarization	-
Fluorescence	-
Interference contrast	-
Dark field	-
Metallurgy	-
school	yes
University	-
